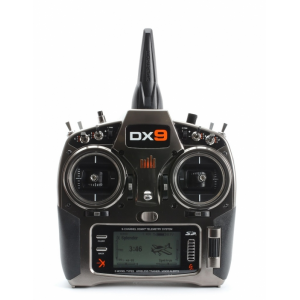

Dx9 Spektrum

Dx9 Spektrum

Precision in model making is now a brand: Spektrum.
The biggest innovation that the DX9 benefits from is its incredible voice alert system. With a lexicon of more than 300 words, numbers and phrases, it is probably the most advanced system ever seen (and heard) in a compact transmitter.
The DX9 comes standard with English voice alert installed, but other languages are and will be available for download.

The advantages of the Modelisme DX9 Spektrum radio control:
Wireless schooling
Although the DX9 has a training cable jack, instructors have the ability to wirelessly connect to another DSM2™/DSMX® transmitter. Once the DX9 is paired with another transmitter, ModelMatch™ technology allows reconnection to the DX9 without having to repeat the pairing process.

Software prepared for the future
The AirWare™ software is regularly updated to keep up with the evolution of Spektrum components.

250 Storeable Role Models
The DX9 has an incredible storage capacity, you can save up to 250 role models and if that's still not enough for you, the SD card reader will allow you an unlimited number of external saves. The new navigation menu is even simpler to use, only the used memories are displayed.

An intuitive interface
The DX9 takes the basis of the DX18, navigation in the menus is very simple thanks to the wheel, its large retro-lit LCD screen presents all the necessary information in a readable way.

General characteristics of the DX9 Spektrum
- 10 Airplane/Glider wing configurations
- 6 Airplane/Glider tail configurations
- 6 Swashplate Configurations

- 5 Airplane/Helicopter flight modes
- 10 Glider flight modes

-Dual antenna
- 9 channels
- Free assignment of switches
- Programs for airplane, helicopter and glider.
- Wireless schooling
- Almost unlimited memory
- Balancing function available on all channels
- 10 programmable mixing curves
- 192x96 LCD screen (Same size as the DX8, but higher resolution)
- Compatible with the 4 driving modes
- SD card included for updates
- Voice alerts- Voice-spoken telemetry values and alerts
- Supports 3-axis gyros for aircraft and allows adjustment of the gain of each axis in flight
- Language selection - English, German, French, Italian and Spanish
- Real-time telemetry
- Absolute race
- 7-point curves for greater precision.
- Electronic swash plate stop
- Programmable flap timing and depth compensation


Features of the DX9 Spektrum

Airplane
- 10 wing configurations: Normal, Double Ailerons, Flaperons, 1 Aileron 1 Flap, 1 Aileron 2 Flaps, 2 Ailerons 1 Flap, 2 Ailerons 2 Flaps, Elevons, Elevon-B, 4 Ailerons
- 6 tail configurations: Normal, V-A, V-B, Double Elevator, Double Drift, Double Drift/Elevator
- Flap timing and depth compensation
- 5 flight modes
- Double swings and exposure
- 10 Programmable Mixes

Helicopter
- Active gyro trim
- 7-point gas curve
- 7-point pitch curve
- 7-point anti-torque curve
- 7 swashplate configurations: Normal, 3 Servos 120°, 3 Servos 135°, 3 Servos 140°, 3 Servos 90°, 4 Servos 90°, 2 Servos 180°
- Offset of the swashplate
- 5 flight modes
- Double swings and exposure
- 10 Programmable Mixes

Glider
- 5 wing configurations: 1 Servo, 2 Ailerons, 2 Ailerons 1 Flap, 2 Ailerons 2 Flaps, 4 Ailerons 2 Flaps
- 3 tail configurations: Normal, V-A, V-B
- Flap timing and depth compensation
- 10 flight modes
- Double swings and exposure
- 10 Programmable Mixes

Contents of the box DX9 Spektrum box
- A TX Li-Ion 2S 2000mA battery
- An SD card
- A DX9 neck strap
- International 12V power adapter
