KIT QAV250 G10 ARF - LUMENIER

QAV250 G10 KIT - LIGHT

This set includes:
- QAV250 FPV G10 - Lumenier
- 4x FX2206-13 2000KV Motor - Lumenier
- 4x SimonK 12Amp ESC Controller (N-FET) - Lumenier
- 5x3 anti-clockwise propellers x2 FPV Racer - Gemfan
- Propellers 5x3 hourly x2 FPV Racer - Gemfan

Kit to assemble delivered with the Elements above


The chassis Lumenier QAV250 V2 mini FPV Quadcopter is a quad FPV. Le QAV250 is a chassis symmetrical de size 250mm.

The cell is designed to support has configuration de lipo 3s and powerful engines de 2000kv Lumenier FX2206-13 for example.

Features V2
New engine mounting holes, more options for the different bolt patterns
G10 material thicker that the plate engine mounting
"Shocks" at endE arms to protect the engine in the event of a collision
Flight controller cover plate understands cutouts for SMA connectors and adapters for the video transmitter.
Un 2.5D CNC-ed G10 unibody hand of the board of directors chassis
Board of Directors integrated energy distribution for the CES and electronics of flight FPV

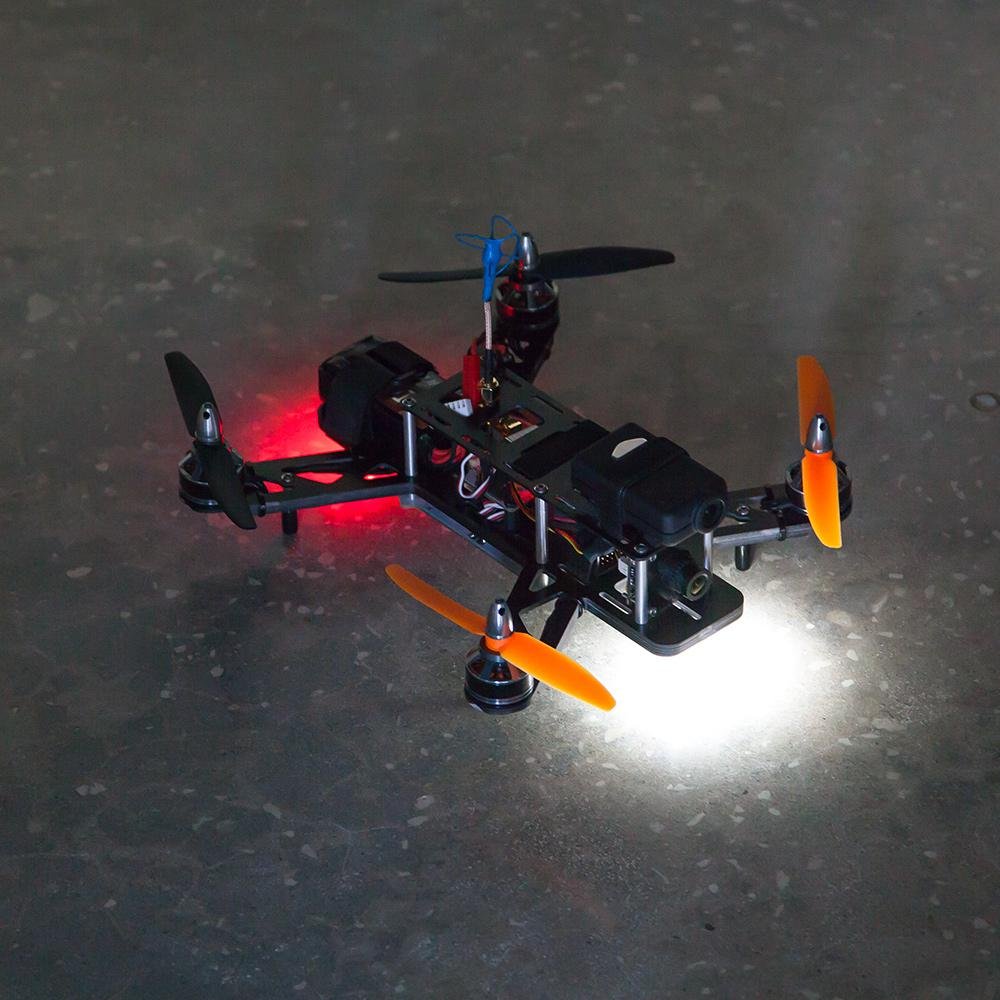

2 strips of LED integrated (white and red) to facilitate guidance LOS
Easy access Lipo (suggested Lipo is a Lumenier 3s 1300mAh)
Support for 32mm cams of the board of directors more in the cases cams with mounting bracket
Support for HD camera (like the Mobius)
Integrated and included Landing gear remind them QAV500 FC Landing Gear

weight
cell: 170g (with the PDB, advice, landing gear and equipment LED)
AUW: Le QAV250 is piloted with a AUW of approximately 540g (understands all electronic devices of flight, speed FPV and camera HD Mobius).
Vibration Free Video

Like all cells ofQAV, the QAV250 product vibration and jello without HD recordings. We realize this vibration use without the use of clean/dirty frame separation Lumenier which is used in the big ones cells ofQAV like the QAV400, QAV500 et QAV540G. This simplifies the little one cell de QAV250, making it lighter, reduced the number of pieces, et points of failure.

Contents of the kit:
- 1x QAV250 G10 cell, assembly on-board camera, and material
- 1x Food distribution board
- 2x panels LED (1 red, 1 white)
- 1x set of disembarkation aluminum gear and vinyl feet
- 5 "neoprenene band anti-vibrations
- 1x Lumenier strap lipo

Motor FX2206-13 2000KV - Lumenier

KV: 2000
Configuration: 12N14P
Stator Diameter: 22mm
Stator Length: 16m
Shaft Diameter: 3mm
Motor Dimension (Diameter x Length): Φ27×23mm
Weight(g): 32g
ldle current(10)@10v(A): 0.3
No.of Cells(Lipo): 2-3S
Max Continuous current(A)180S: 13A
Max Continuous Power(W)180S: 144W
Max. efficiency current: (2-7A)>80%
Internal resistance: 80mΩ



SimonK 12Amp ESC Controller (N-FET) - Lumenier

Ideal ESC for Racer 250

Features:
- Max: 12Amps
- BEC: 5v/Aamp Max
- Lipo 2 to 4 cells
- 2mm connectors
- Weight: 10g
- Dimensions: 31x18x7mm

Propellers 5x3 hourly x2 FPV Racer - Gemfan

5x3 anti-clockwise propellers x2 FPV Racer - Gemfan
