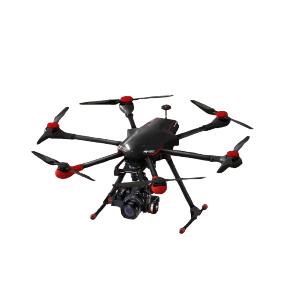

M690 & G3 5D gimbal assembly - Align

M690 & G3 5D gimbal assembly - Align


This set includes:
-M690L Align
- G3 5D 3-axis gimball


M690 Super Combo - Align

The Align M690 multirotor is the specialist for amateur or professional aerial photography. Boasting impeccable manufacturing quality as the brand has demonstrated to us many times.
With a diagonal of 900mm in a hexacopter configuration, this drone can carry a 3-axis brushless gimbal such as G3-GH or G3-5D for demanding professionals.

Designed for moisture resistance, the pinnacle of power and beauty, industry and structural design.

The arms have a quarter-turn for locking and unlocking to allow quick installation and storage. Once folded, the size of the multirotors is greatly reduced so that it can be transported with a minimum of space.

The high-rigidity plastic composite blades reduce noise and are more efficient, thus leading to better flight efficiency and greater flight autonomy. The blades are also foldable for simplified transport.

The common platform allows a very rapid change between the quad platform and the hex platform in case of power requirements on heavy equipment. the arms are very rigid and come directly from Align's know-how in Professional Helicopters. The entire chassis thus becomes very rigid, thus providing ideal support for aerial photography.

The returning train, offering a 360° field of vision, underwent a battery of tests and an endurance test of 20,000 repetitive actions.

The BL4213 370KV brushless motors combine all the know-how of ALIGN motorization: high torque, high efficiency, no loss of power and a low operating temperature. This allows an autonomy of 20 minutes on a bare chassis with a simple 5200mAh Lipo, or 10 minutes with a G3 + GH4 gimbal. The duration of the flight will therefore be extended greatly by using high capacity batteries >= 10000mAh

Brushless controllers have LEDs with unchangeable colors if necessary.

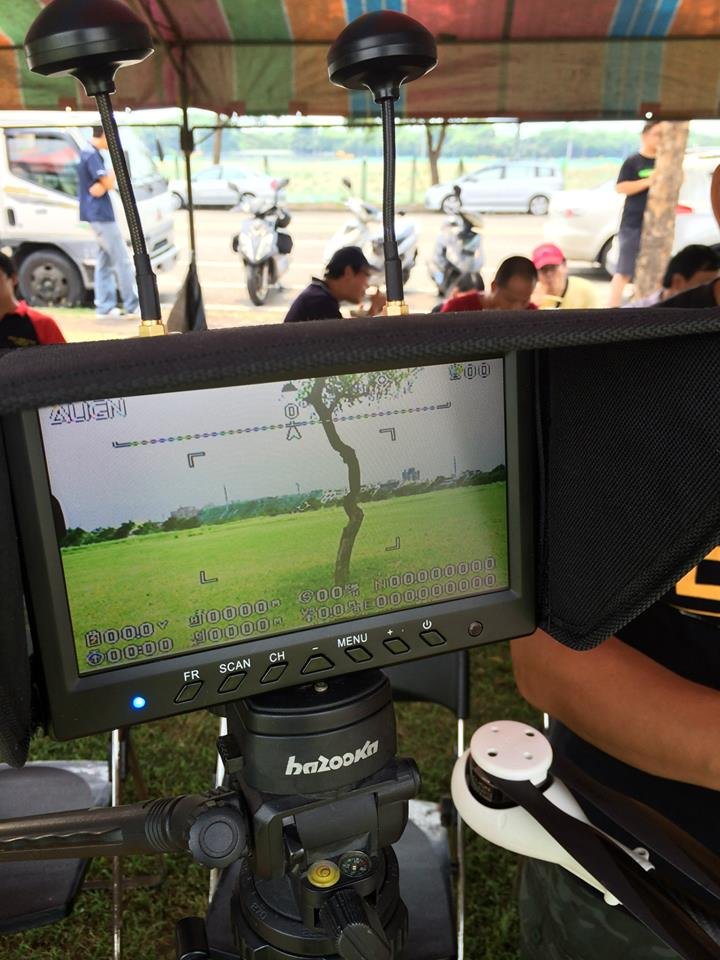

The new APS-M flight controller supports quad(4), hexa(6) and octo(8) configurations. Flight modes include attitude, GPS speed, GPS angular, Intelligent and manual. In addition, it offers GoHome failsafe mode, low voltage failsafe, OSD Signal outpout, gimbal control, fix-point survey functions.

The battery holder allows the installation of a single high capacity battery, or two smaller batteries. The support slides in its housing and the locking ensures flawless support.

The OR connectors are given for 100Amps with patented anti-spark.

Contents of the kit:
- M690 chassis hexacopter configuration
- 6x 4213 brushless motor
- 6x brushless ESC
- APS-M flight controller with GPS module
- LED GPS
- PCU Power Control Unit
- retractable trains
- 4x pair of plastic blades 7.5

Gimball G3-5D - Align

gimbal for 5D
